RENNtech R3 Performance Package | GT 63 (S) AMG | X290 | 875 HP / 871 TQ | 4.0L V8 BiTurbo | M177 | MY2019+

$27,880.00

RENNtech R3 Performance Package | GT 63 (S) AMG | X290 | 875 HP / 871 TQ | 4.0L V8 BiTurbo | M177 | MY2019+

R3 Performance Package for Mercedes-AMG GT63 (S) 4-Door Coupe: ECU Upgrade (HHT), Stage 1 Turbo Upgrade, Mufflers, Carbon Fiber Airboxes, TCU, CPC, Fuel Management System, BOV, EVM, BMC Air Filters
Description

The Mercedes X290 - GT 63 (S) AMG 4-Door Coupe comes with the newest engine fully developed by AMG, the company’s Affalterbach based performance division and long fabled engine builder. The result is nothing short of spectacular and the 4.0L V8 BiTurbo engine is an incredible platform to build performance upon.

RENNtech’s R1, R2, R3, and R3+ are vehicle specific performance packages, engineered to increase vehicle power output while ensuring all upgrades work in sync, resulting in optimal overall performance.

Increasing performance in stages offers a clear path toward the desired development goal or stage. Starting at R1, moving forward is easy and gives owners the ability to evaluate the impact of each level of modification through the stages. Owners can also plan and budget for additional modifications, making the ultimate build more affordable in the long run.

R-Line Comparison:

Vehicle Package HP Gains TQ Gains
X290 - AMG GT63

Stock

681 HP   736 LB-FT
X290 - AMG GT63 ECU Upgrade
773 HP +92 HP 778 LB-FT +42 LB-FT
X290 - AMG GT63 R1 Package 783 HP +102 HP 788 LB-FT +52 LB-FT
X290 - AMG GT63 R2 Package 793 HP +112 HP 788 LB-FT +52 LB-FT
X290 - AMG GT63 R3 Package 875 HP +194 HP 871 LB-FT +135 LB-FT
X290 - AMG GT63 R3+ Package 1,017 HP +336 HP 873 LB-FT +137 LB-FT

The RENNtech R3 performance upgrade features RENNtech’s Stage I turbochargers with lightweight forged billet turbo wheels with a larger impellers (inlet side) and an increase in the turbine trim (exhaust side). The combination of high quality, lightweight components compensate for turbo lag despite being a functionally larger turbo. The cartridge supporting shaft is both larger and stronger, designed to handle the larger wheel and additional power, which is then fine balanced as a complete assembly to safely allow for these increases. The impeller and turbine housings are then precision machined and flow tested in-house to fit the larger internal cartridge. The result is nothing short of spectacular with a turbos capable of safely creating up to 1017 HP and 873 LB-FT of torque.

Through extensive dyno and road testing, RENNtech’s engineers were able to significantly increase the area under the curve, especially within the important RPM range between 5,500 and 7,000 RPM delivering peak gains of +336 HP and +173 LB-FT without sacrificing traction and drivability in the lower RPM range.

More power is not the only performance benefit. The RENNtech Stage I turbos spool quicker, offer a more responsive throttle and immediate power delivery thanks to a reduction in exhaust back pressure, rolling resistance, higher RPM's and a lighter rotating mass. This is more than just an OEM turbocharger with machined internals; but a dramatically larger, more powerful turbochargers that blows away anything else on the market!

What is included in the R3 package:

  • ECU Upgrade: Our proprietary tuning module stores both the RENNtech tuned file and your vehicles stock file. The module plugs directly into the OBD2 port and delivers the file you choose directly to the ECU.

  • Stage I Turbo Upgrade: RENNtech lightweight forged billet turbo wheel features a larger-than stock impeller (inlet side) and an increase in the turbine trim (exhaust side). This isn’t just an OEM turbo charger with machined internals; but a dramatically larger, more powerful turbocharger that blows away anything else on the market.

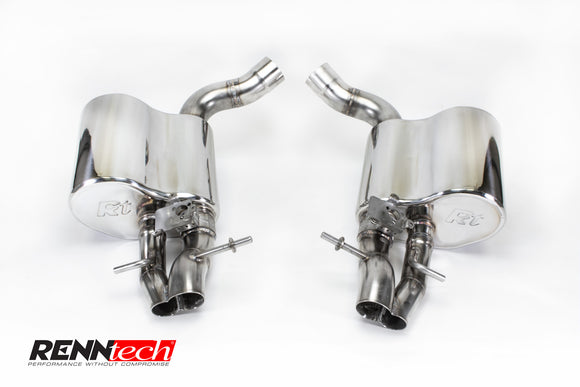

  • Stainless Steel Sport Mufflers: Made out of 2 3/4 inch diameter tubing our sport mufflers are lighter weight than the stock exhaust and improve performance by reducing exhaust back pressure, increasing exhaust gas flow and cylinder scavenging. Fully compatible with factory exhaust valves, for Comfort, Sport, Sport + / Race -modes.

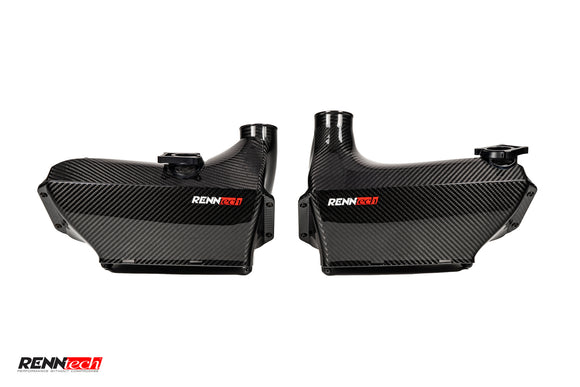

  • Carbon Fiber Airboxes: Substantially larger than stock and a symmetrical design that delivers over 30% more filter area allows the engine to perform at the highest level in both stock and tuned form.

  • TCU Upgrade: TCU upgrade elivers faster acceleration by matching the power output of our ECU and Turbo upgrades with increased Clutch Torque Limits, Clutch Pressure, and faster shift times.

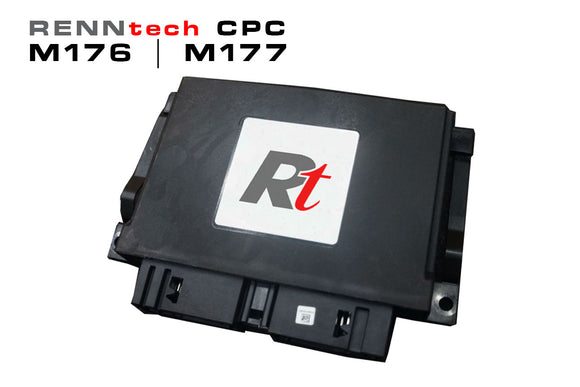

  • CPC Upgrade: The Powertrain Control Unit (CPC) upgrade increases torque limits and allows the engine to operate without the restrictions set by the stock/factory CPC unit.

  • Fuel Management System: Increased flow and pressure to meet the demand of upgraded performance parts including Turbos and ECU.

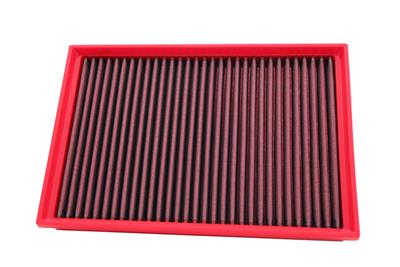

  • BMC Air Filters: BMC air filters are designed to last longer and create more power than the OEM paper filters.

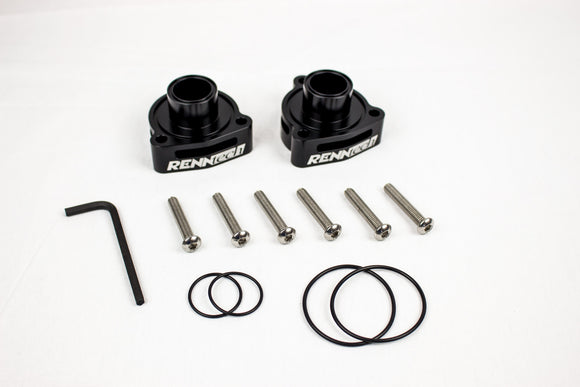

  • Blow Off Valves: Designed as a quick bolt-in solution which are intended to release excessive pressure in high boost occasions.

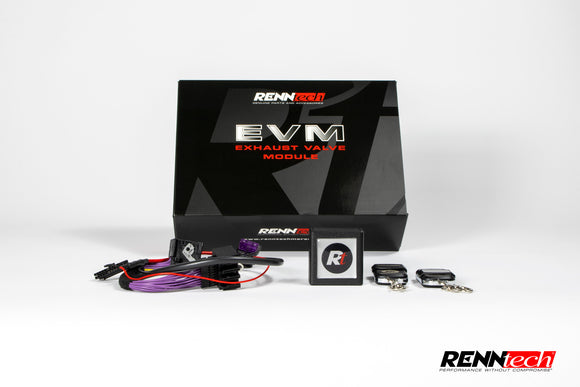

  • Exhaust Valve Module: The EVM allows you to fully open the exhaust valves of the AMG Sport Exhaust, giving you complete control over the exhaust sound regardless of speed, RPM or driving mode.

Key Features:

  • Larger Lightweight forged billet inducer and exducer wheels
  • Cartridge shaft is larger and stronger to support larger wheel
  • Entire cartridge is fine balanced as an assembly
  • Less rolling resistance offers quicker spooling
  • Virtually no lag with impressive throttle response
  • Precision machined impeller and turbine housings
  • Up to 875 HP and 871 LB-FT @ crank with 93 Octane Fuel

The R3 Performance Package was developed and tested running on standard 93 octane gas.

Performance Tests:

Vehicle Upgrades 0-60mph 0-100mph 60-130mph 1/4 Mile ET Trap Speed
X290 - AMG GT63

Stock w/o Launch Control

3.0 sec 6.98 sec 8.65 sec 11.15 sec 127 mph
X290 - AMG GT63 Rt ECU Upgrade w/Launch Control 2.70 sec 6.61 sec 7.86 sec 10.62 sec 131 mph
X290 - AMG GT63 Rt Stage I Turbo Upgrade w/Launch Control 2.59 sec 6.11sec 7.39 sec 10.39 sec 133 mph
X290 - AMG GT63 Rt Stage II Turbo Upgrade w/Launch Control,  2.44 sec 5.52 sec 6.47 sec 10.1 sec 136 mph

*If not otherwise noted, performed on non-prepped asphalt and with OEM, Street-Legal and/or Non-Performance tires. Data measured with Racelogic Performance Box.

Dyno-Graph for Performance measured at the wheels:
